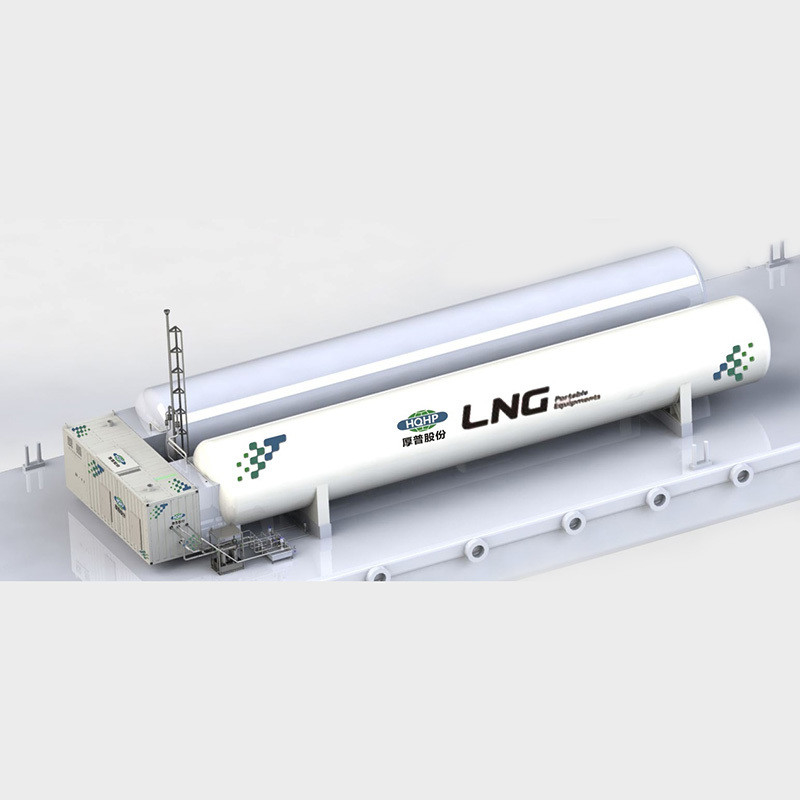

Double tank marine bunkering skid

Les informations détaillées

Description de produit

Les informations détaillées

Description de produit

The maximum bunkering capacity is 65m³/h. It is mainly used in on-water LNG bunkering stations. With PLC control cabinet, power drag cabinet and LNG filling control cabinet, functions such as bunkering, unloading and storage can be realized.

Product features
Specifications
Ask now

Product features

Modular design, compact structure, small footprint, easy installation and use.

Double tank marine bunkering skid

● Approved by CCS.
● The process system and electrical system are arranged in partitions, which is convenient for maintenance.

● Fully enclosed design, using forced ventilation, reducing the dangerous area, high safety.
● Can be adapted to tank types with diameters of Φ3500～Φ4700mm, with strong versatility.
● Can be customized according to user needs.

Specifications

Model	HPQF sery	Design temperature	-196～55℃
Dimension(L×W×H)	8500×2500×3000 (mm) (Exclusive of tank)	Total power	≤80KW
Weight	9000 kg	Power	AC380V, AC220V, DC24V
Bunkering capacity	≤65m³/h	Noise	≤55dB
Medium	LNG/LN2	Trouble free working time	≥5000h
Design pressure	1.6MPa	Measurement error	≤1.0%
Working pressure	≤1.2MPa	Ventilation capacity	30 times/H
*Note: It needs to be equipped with a suitable fan to meet the ventilation capacity.

Application

The dual-tank marine bunkering skid is suitable for large-scale floating LNG bunkering stations with unlimited installation space.
